Engineered with a lightweight aluminum telescopic pole and soft, non-scratch brush head, this tool is safe for all types of solar modules, including mono, poly, bifacial, and glass-glass panels. The optional water-fed cleaning system allows you to brush and rinse simultaneously, making it the ideal choice for quick and effective solar panel maintenance.Designed for homeowners, commercial rooftop systems, ground-mounted PV farms, and professional cleaning services, this solar panel cleaning tool offers excellent durability, easy operation, and strong corrosion resistance for long-term outdoor use. Whether you manage a residential solar system or a large-scale solar plant, this tool helps maximize energy production and reduce maintenance costs.
Product Parameter
|
Project |
Specifications |
|
Light Source |
High-brightness LED beads (color temperature:5000K-6500K,cool white) |
|
Rated Power |
Emergency mode: 10W; Normal power mode: 15W |
|
Illumination Performance |
Illumination intensity: ≥300lux (at 1m distance); Irradiation range: Up to 15m |
|
Battery System |
Type: Lithium iron phosphate battery; Capacity: 20000mAh; Cycle life: ≥1000 times |
|
Endurance& Charging |
Endurance: 12h (standard mode), 6h (high-brightness mode); Charging time: ≤8h (AC220V) |
|
Power Compatibility |
Input voltage:AC110V-240V(wide voltage adaptation) |
|
Protection Level |
IP65 (dustproof,waterproof);Flame rating: V-0 (ABS shell) |
|
Operating Environment |
Temperature: -20℃~60℃; Humidity: ≤95% (non-condensing) |
|
Installation |
Supported methods: Wall-mounted, ceiling-mounted, embedded |
|
Physical Dimensions |
320mm (L) × 180mm (W) × 85mm (H); Net weight: 2.8kg |
|
Service Life |
Light source: ≥50000 hours; Battery: ≥5 years (under normal use) |
Product feature and application
Core Product Features
Instant Activation (≤0.3s): Equipped with a high-sensitivity intelligent sensor chip, it switches to emergency mode the moment power is cut off-no "dark gap" to prevent panic or operational mistakes.
Ultra-Long Endurance: The 20000mAh lithium iron phosphate battery supports up to 12 hours of continuous lighting, easily covering long-duration power repairs or emergency drills.
Industrial-Grade Durability: ABS flame-retardant shell + metal reinforced frame resists impact, high/low temperatures, and moisture-ideal for harsh power site conditions.
Eye-Friendly & Energy-Saving: Uniform, glare-free LED light protects workers' vision during prolonged use; energy consumption is 67% lower than traditional emergency lights.
Smart & Hassle-Free Operation: Real-time battery level indicator, automatic power mode switching, and triple protection (overcharge/over-discharge/short circuit) reduce maintenance needs.
It can be used in various scenarios.
Application Scenarios
Core power facilities: substations, high-voltage distribution rooms, power control centers
Underground/confined spaces: cable tunnels, power maintenance wells
New energy sites: photovoltaic power stations, wind turbine control rooms
Temporary work area: power construction site, emergency maintenance area
Other high demand areas: power dispatch room, battery energy storage station
Production details
Your portable emergency light can be installed on most surfaces, such as walls and ceilings, with its quick connect back panel. They can seamlessly connect with most junction boxes and snap into place for internal electrical connections. Alternatively, you can plug it into any AC power outlet.
This heavy-duty emergency light, certified by UL, ensures safe operation and first-class quality. The steel lamp body gives it the characteristics of scratch resistance, corrosion resistance, and impact resistance.

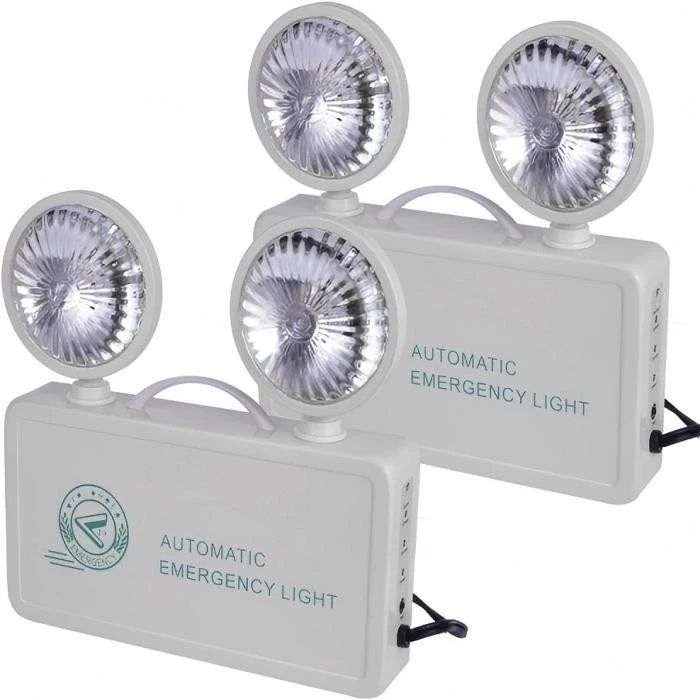

Our rechargeable emergency light for home use is equipped with two lamp heads that can rotate horizontally 360 degrees and vertically 45 degrees, accurately illuminating any place you need it to illuminate.
When the power is cut off, the voltage sensor connects to the battery circuit and lights up the emergency light. Based on this, emergency lights can be used in different locations of commercial places, such as exits or stairwells in commercial buildings, schools, churches, kindergartens, office buildings, hospitals, etc.
Product Certification
Our industrial grade emergency lighting has obtained multiple authoritative certifications and meets global and industry standards:
Domestic certification:
China Compulsory 3C Certification
Compliant with GB17945-2010 "Fire Emergency Lighting and Evacuation Indication System"
Special Equipment Testing Certificate for the Power Industry (issued by China Electric Power Research Institute)
International certification:
CE certification (compliant with EN 60598-2-22 emergency lighting standard)
RoHS certification (lead-free, mercury or other restricted substances)
UL certification (applicable to the North American market, compliant with UL1993 standards)
FAQ
Q: How to confirm if the emergency light is working properly?
A: When connected to an AC power source, the green indicator light remains on (indicating normal charging). Press the 'test button' - the light should immediately switch to emergency mode, and the red indicator light should flash (indicating that the battery function is normal).
Q: Can this product be used in outdoor power plants during heavy rain?
A: Yes. The protection level is IP65, which can withstand heavy rain (simulating 100L/h water spray for 30 minutes) without water ingress. However, it is not designed for long-term diving.
Q: What should I do if the battery life significantly shortens after one year?
A: Our batteries come with a one-year warranty period. Please contact our after-sales team and provide your order number and battery issue video - if the problem is not caused by human factors, we will provide free battery replacement.
Q: Do you need professional installation?
A: No. This product includes a detailed installation manual and step-by-step diagram. Ordinary tools (drill bits, screwdrivers) are sufficient for wall/ceiling installations. For embedded installation, we recommend coordinating with on-site electricians.
Q: Can emergency lights be connected to a backup power system (such as UPS)?
A: Yes. It supports AC110V-240V wide voltage input and can be connected to UPS systems. When the main power supply fails, the UPS will supply power to the lights in normal mode; If the UPS also malfunctions, the indicator light will switch to battery powered emergency mode.
Packing & Shipping
