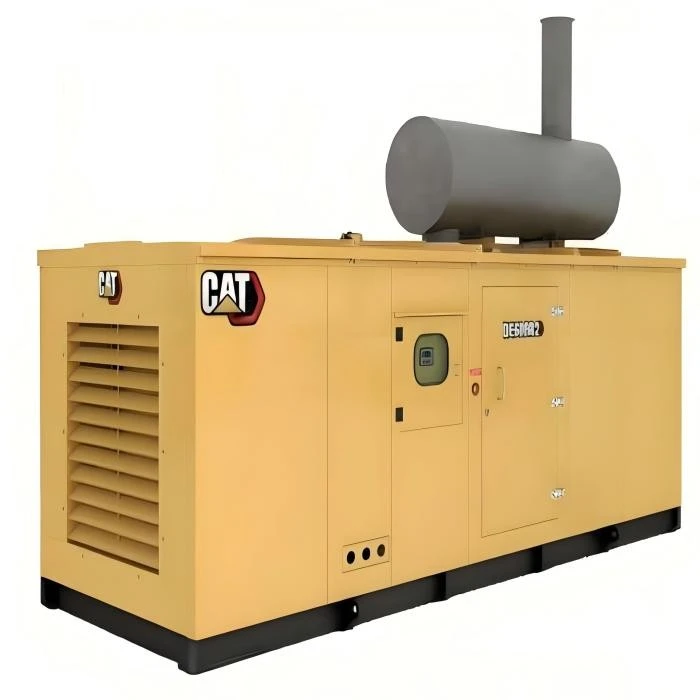

As a benchmark product in the global engineering machinery and power equipment field, Caterpillar diesel generators rely on Caterpillar's nearly century long engine research and development technology accumulation, specially designed for industrial power supply needs, integrating efficient power generation, stable operation, and intelligent operation and maintenance. This series of generators adopts Caterpillar's original ACERT diesel engine, combined with high-precision power generation module and intelligent control system, which can achieve full coverage of main, backup and emergency power supply scenarios. It can continuously output stable power under extreme working conditions, effectively ensuring uninterrupted operation of production operations and public services.
Product Parameter
|
Parameter Name |
Parameter Value |
Parameter Name |
Parameter Value |
|
Rated Power |
20kW -2000kW (optional) |
Rated Voltage |
220V/380V/400V (customizable with multiple voltage levels) |
|
Rated Frequency |
50Hz/60Hz (globally compatible) |
Power Factor |
0.8 (lag) |
|
Engine Model |
Original models such as Cat C4.4/C6.6/C13/C175 |
Starting Method |
Electric start (24V)/fully automatic start |
|
Fuel Consumption Rate |
205g/kW · h -220g/kW · h (under rated load) |
Fuel Tank Capacity |
50L -1000L (depending on the model, expandable) |
|
Noise Level |
Standard Type 78-85dB (A)/Super Silent Type 70-78dB (A) |
Protection Level |
IP23 (standard type)/IP54 (rain and dust proof type) |
|
Operating Temperature |
-40 ℃~+55 ℃ (suitable for extreme environments) |
Storage Temperature |
-50℃ ~ +70℃ |
|
Control Mode |
Manual/automatic/remote control (optional ATS switching) |
Weight |
500kg -15000kg (depending on power level) |
Note: The above are standard parameters, parameters of different power models are slightly different, and models can be selected or special configurations customized according to customer needs.
Product feature and application
Key Features of Our Catapillar Diesel Generator
Equipped with Caterpillar's original ACERT diesel engine, advanced fuel injection technology and power recovery system, the fuel consumption rate is as low as 205g/kW · h, saving 10% -15% energy compared to similar products and significantly reducing operating costs; Strong power output, with an overload capacity of up to 110%, can easily handle sudden loads.
-Stable&Reliable, Strong Working Condition Adaptability:
Tested in harsh environments such as extreme temperatures, high dust, and high humidity, with a protection level of IP54. It can start normally at -40 ℃ and operate stably at 55 ℃; Adopting high-strength body structure and high-quality components, with low failure rate and a service life of over 15 years, it meets the requirements of continuous operation.
Equipped with Cat intelligent control system, high-definition LCD display screen monitors key parameters such as speed, voltage, fuel consumption, water temperature, etc. in real time, supporting automatic fault diagnosis and alarm; Optional remote monitoring module, enabling remote start stop, data viewing, and fault warning without the need for manual duty, reducing operation and maintenance costs.
The standard unit noise is controlled within 85dB (A), and the super quiet type is as low as 70dB (A). Through a maze like intake and exhaust duct and high-efficiency muffler design, the operating noise is significantly reduced; Compliant with international environmental standards such as Euro IV and EPA Tier 4, with emissions meeting standards and adapting to global environmental requirements.
Power coverage of 20kW-2000kW, support for 50Hz/60Hz frequency and multi voltage level customization, can be matched with accessories such as soundproof cover, large capacity fuel tank, ATS automatic switch, etc; Compliant with international certification standards such as IEC, UL, CE, etc., suitable for power grids and regulatory requirements in different countries and regions around the world.
It can be used in various scenarios.
Catapillar diesel generators, with their superior power performance and stable operation, have been widely used in various fields such as industry, energy, and municipal engineering worldwide, providing safe and reliable power supply solutions for various scenarios.
Production details
-Core Engine: Caterpillar's original ACERT diesel engine adopts high-pressure common rail fuel system and exhaust turbocharging technology, with strong power, low fuel consumption, and emission standards; The engine cylinder block is made of high-strength cast iron material, which is resistant to vibration, wear, and extends its service life.
-Intelligent Control Panel: High definition color LCD display screen, bilingual switching between Chinese and English, real-time display of operating parameters and fault information; The button layout is simple, supporting manual/automatic/remote mode switching, with one click start and stop functions, and easy operation.
-Mute&Protective Structure: The silent unit is equipped with a double-layer soundproof cover, which contains sound-absorbing cotton and a maze style intake and exhaust duct, effectively blocking noise transmission; The shell is treated with cold-rolled steel plate spray coating, which is corrosion-resistant, anti-aging, and has a protection level of IP54, suitable for harsh outdoor environments.
-Heat Dissipation&Fuel System: Equipped with a large capacity radiator and an intelligent temperature controlled fan, it quickly dissipates the heat generated by the operation of the electric motor, avoiding overheating and damage; The fuel tank is made of anti-corrosion material and equipped with a fuel level sensor and anti-theft device. It can be expanded according to demand to ensure long-term continuous operation.
-Electrical System: Using high-quality generator stator and rotor, with high power generation efficiency and strong voltage stability; Equipped with multiple protection devices such as overload, overvoltage, overheating, and low oil level, it automatically cuts off the power supply to prevent equipment damage and safety accidents.
-Easy Maintenance Design: The body is equipped with a reserved maintenance window, and key components such as the engine and generator can be quickly disassembled; The layout of the oil and fuel filters is reasonable, making it easy for daily replacement and maintenance, and reducing the difficulty of operation and maintenance.
Product Certification
Catapillar diesel generators rely on a rigorous quality control system, have passed multiple international authoritative
certifications, have complete qualifications, and can smoothly enter the global market with guaranteed quality.
FAQ
Q: Which countries' power grid standards and environmental requirements can this generator be adapted to?
A: The product supports customization of multiple voltage levels such as 50Hz/60Hz frequency and 220V/380V/400V, and complies with international power grid standards such as IEC, UL, CE, etc. It can adapt to the power grid needs of most countries and regions around the world such as Europe, America, Asia, Africa, etc; At the same time, it has passed environmental certifications such as Euro IV and EPA Tier 4, achieving emission standards and meeting the environmental regulations of different countries.
Q: What is the fuel consumption rate of the generator? Is the operating cost high?
A: The generator is equipped with Caterpillar ACERT high-efficiency engine, with a fuel consumption rate as low as 205g/kW · h under rated load, saving 10% -15% energy compared to products of the same level; At the same time, an intelligent fuel management system is adopted, which can automatically adjust fuel supply according to load changes, further reducing fuel consumption and significantly improving long-term operating costs.
Q: Does the product support remote monitoring and automatic start stop? How to achieve it?
A: Supports remote monitoring and automatic start stop function. Optional Cat intelligent remote monitoring module, which enables remote monitoring of generator operating parameters, fault alarms, remote start stop and other operations through mobile APP or computer client; Equipped with an ATS automatic switch, the generator can automatically start to supply power when the power grid is cut off. After the power grid is restored, it will automatically switch and stop without manual intervention.
Q: Does the installation and maintenance of the generator require professional personnel? Do you provide technical support?
A: The installation of the generator needs to be operated by professionals with relevant qualifications, especially for high-power models and ATS switching systems. We will provide detailed installation manuals, operation manuals, and video tutorials; At the same time, we provide global technical support and can arrange professional technical personnel to guide installation, debugging, and maintenance services on site according to customer needs (additional negotiated fees are required).

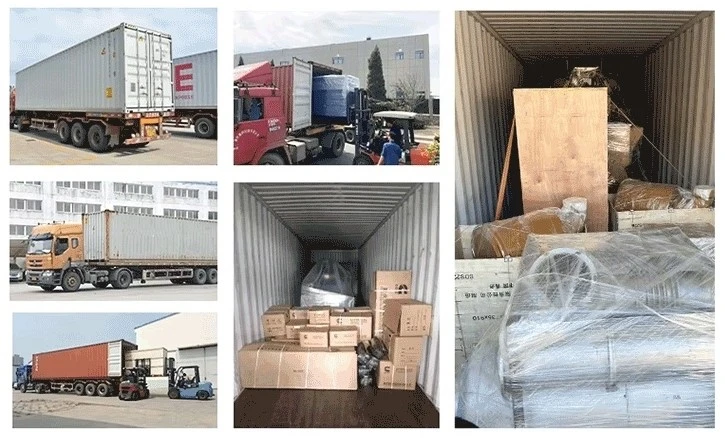

Packing & Shipping
